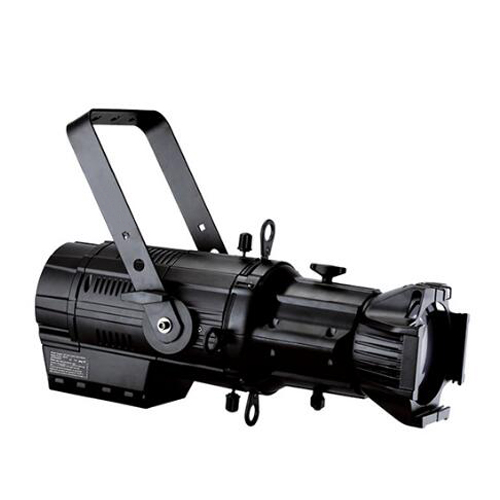

LPS-A150(WW)-36B

LED Ellipsoidal Light, 150W, 36°, 3200K, 1/2CH, IP20, Black Shell

Product Description

LIGHT SOURCE
▪ LEDs: COB 150W, warm white
▪ Color temp: 3200K
▪ Color rendering index(CRI): Ra>90
▪ LEDs average lifespan: >50,000hrs
▪ Drive mode: constant current

OPTICS
▪ Beam angle: 36°( 19°/26°/50°optional)
▪ Flicker free (refresh rate >100K Hz)

COLORS
▪ Colors: Single color, warm white

EFFECTS
▪ Electronic dimmer: 0-100% linear
▪ Electronic strobe: 1-25 flashes/sec.

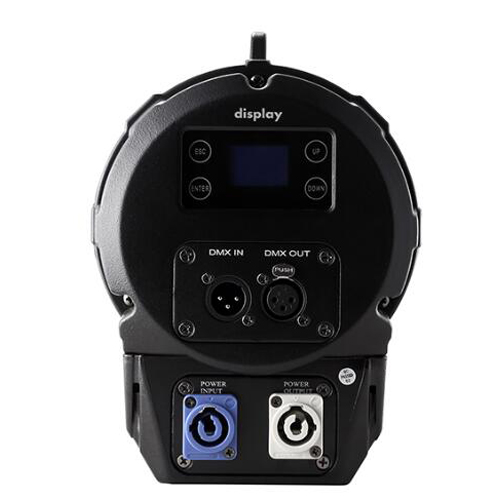

CONTROL AND PROGRAMMING
▪ DMX Channel: 1/2CH

PAN-TILT
▪ Tilt: -90º~+90º

BODY
▪ Housing: ABS engineer plastic
▪ Housing color: black
▪ Housing surface treatment: baking finished

POWER SUPPLY
▪ Power consumption: Max. 165W
▪ Auto switching power supply unit
▪ Power supply: AC100V-240V, 50/60Hz (auto-ranging)

COOLING & THERMAL MANAGEMENT
▪ Thermal management system ensures long life of LEDs
▪ Heatsinks in aluminum for LED source
▪ Cooling: forced air convection, with 2 slient fans

SAFETY DEVICES
▪ Electronic protection against short circuit

RIGGING
▪ With single mounting yoke

ENVIRONMENT AND PHYSICAL
▪ IP rating: IP20
▪ Environment temp: -20°C-45°C
▪ Dimensions(mm): L721 x W360 x H475 (with yoke)
▪ Net weight: 10.1 kgs

ACCESSORIES
▪ Gel frame(i.e. filter frame) included
▪ Gobo holder included
▪ Manual iris not included (optional)
▪ Power input cable included, length 1.0mtr
▪ Power cable: 0.75mm2, PVC
▪ DMX cable included, length 3.0mtr
▪ Safety cable not included (optional)
