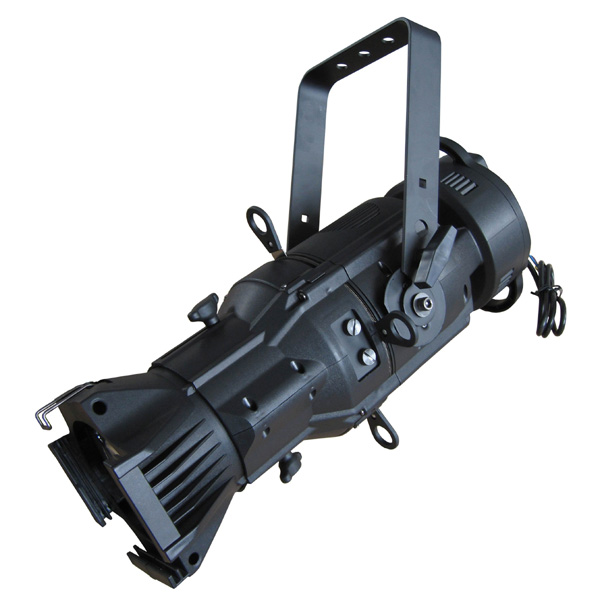

LPS-A120(WW)-26B

LED Ellipsoidal Light,120W,26°, 3200K, 2CH, IP20, Black Shell

Product Description

ELECTRICAL
Power supply: Electronic auto-ranging
Input voltage range: 100-240 V, 50/60 Hz
Power in/out connector:powerCON in/out
DMX data in/out: 3-pin XLR(5 pin optional)
Power Consumption: 140W

LIGHT SOURCE
Light Source Type: COB 120W, 3200K
LED life expectancy:50,000hrs
CRI: Ra>78
Color Temperature:3000-3200K

OPTICAL SYSTEM
Beam Angle: 26°
Lens Type: HQ glass lens optics
Light ouput (full Bright): 4026Lux@4mtr; 1020Lux@8mtr

BODY
Body: ABS engineer plastic
Body Color: Black(white optional)
Housing surface treatment: baking finished

CONTROL AND PROGRAMMING
Control Mode: DMX, autorun and Master/Slave
Protocols: DMX512
Dmx Channels: 2CH

DYNAMIC EFFECTS
Colour mixing mode: single white
Dimmer: Linear 0~100% electronic dimmer
Strobe/Shutter: 1-20 Hz, electronic
Operating Temperature: -10° / 45°
Flicker: Flicker free operation

PHYSICAL

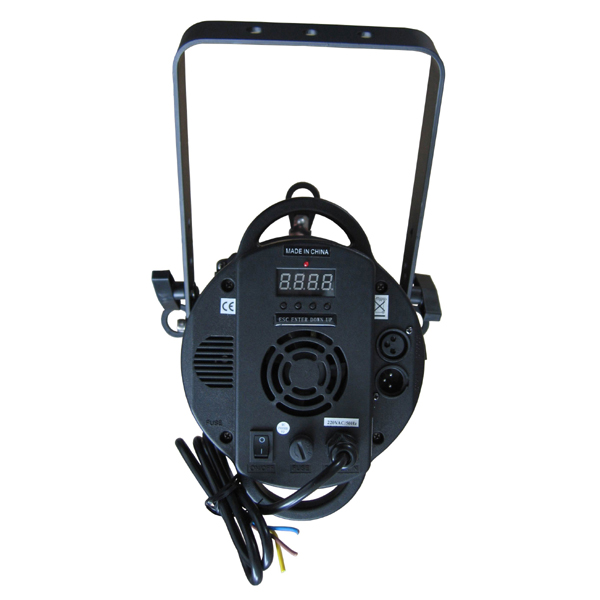

Control Connection: 3p in/out
Power Connection: PowerCON in/out
Cooling: forced air convection, with 1 slient fan

DIMENSIONS
Product Weight:5.5kg
Fixture size (WxHxD): L643 x W360 x H360 mm(with yoke)

LISTINGS
Certification: CE
Environment: IP20

INCLUDED ACCESSORIES
Gel frame(i.e. filter frame) included
Gobo holder included
Power input cable included, length 1.0mtr (0.75mm2, PVC )

OPTIONAL ACCESSORIES
Manual iris not included (optional)
DMX cable not included (optional)
Safety cable not included (optional)

KEY FEATURES
Sharp, clean beam
Flat, even field of light
High-efficiency optics
Noiseless operation
Simple and complex DMX channel
MASTER / SLAVE mode

Ideal for Theatre, Church, Mobile DJs, Clubs, Bars, Retail Stores and Promotional Events.
